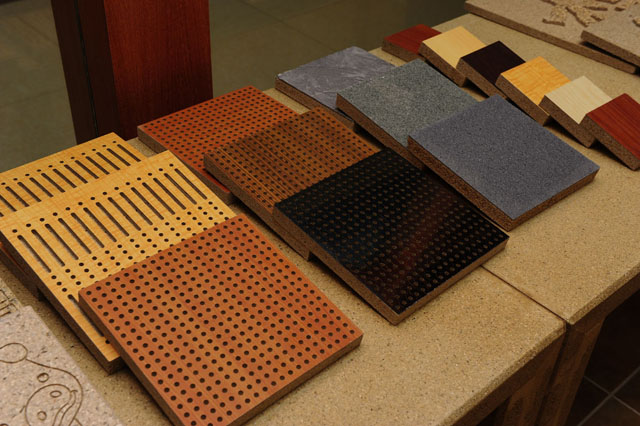

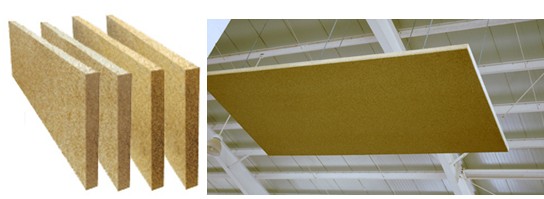

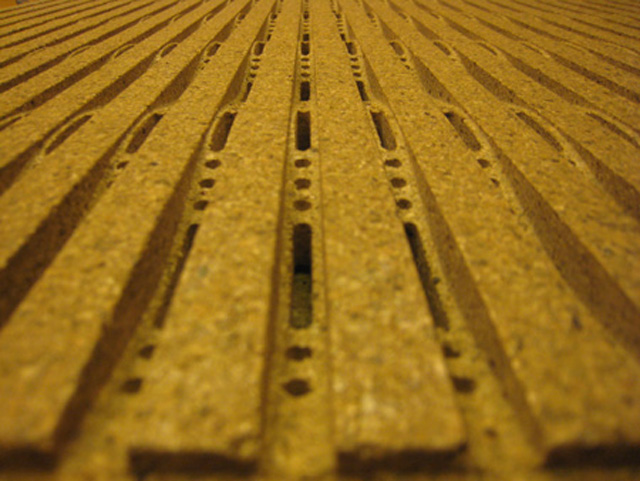

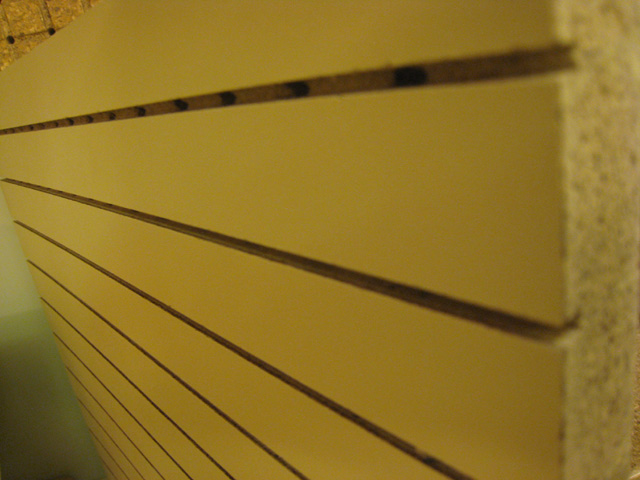

Vermiculite Acoustic Panel
Characteristics: Fireproof, heat and sound insulation, damp proof, moisture absorption, lightweight, mildew proof, environmental-friendly etc.
- Description

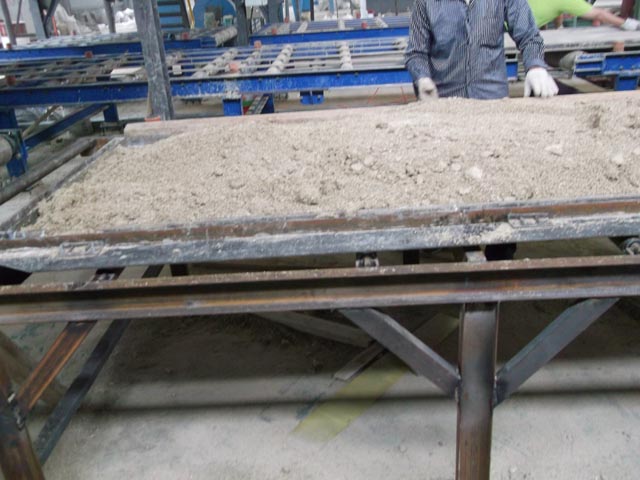

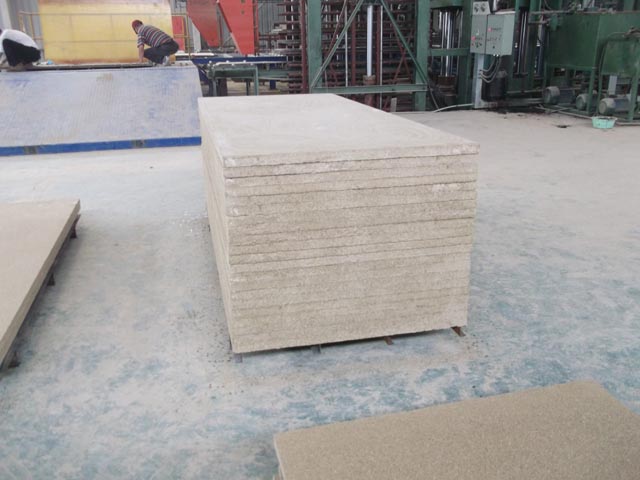

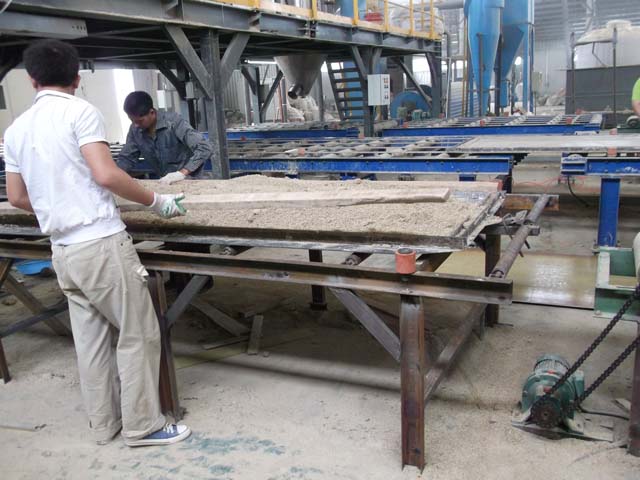

- Production line

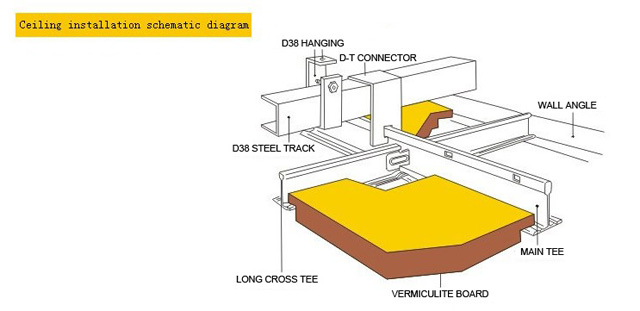

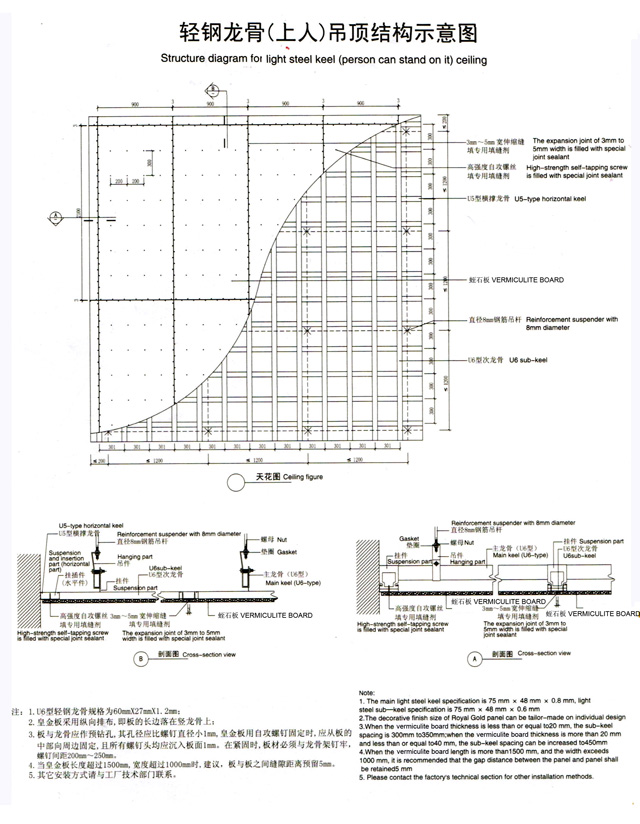

- Installtion

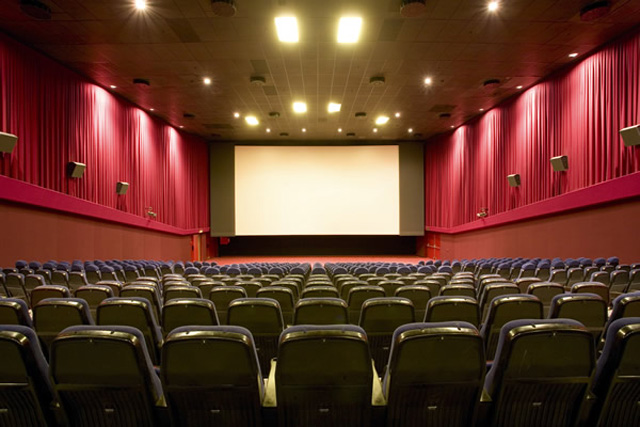

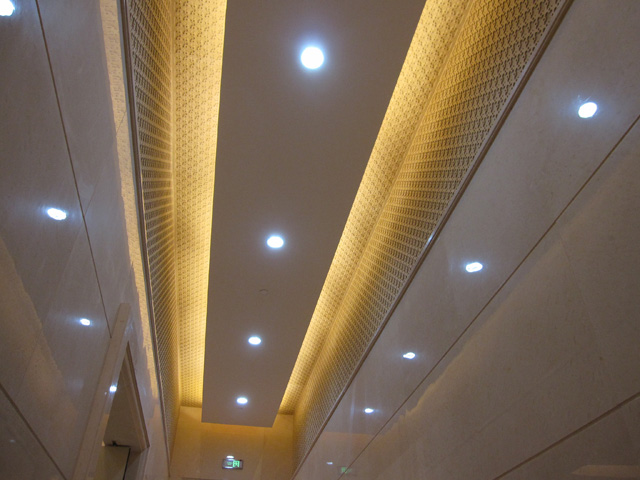

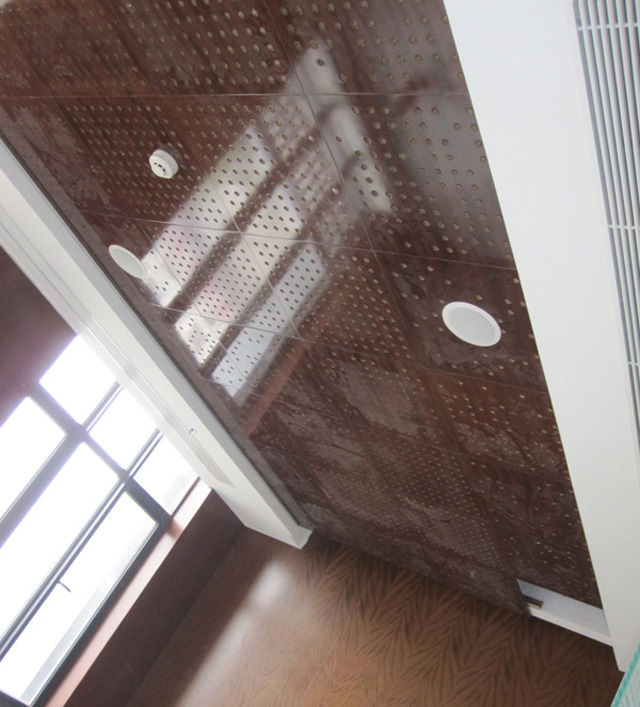

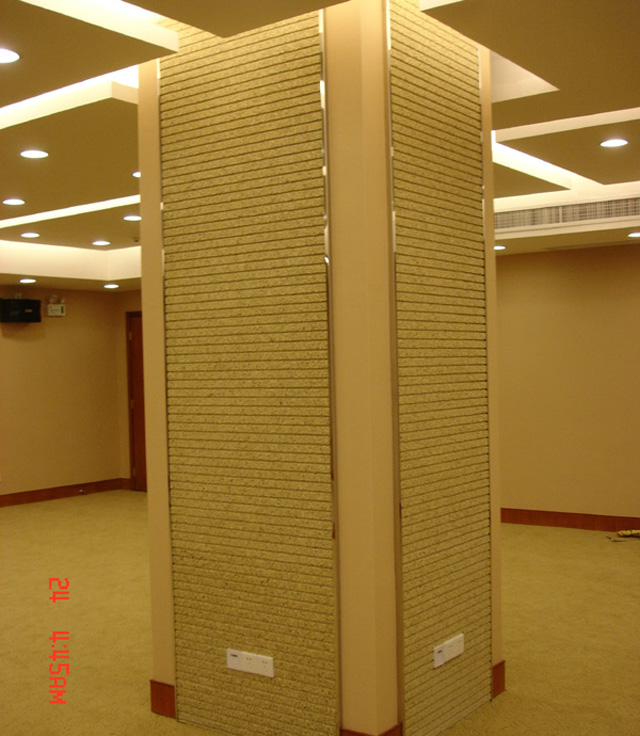

- Application
- Certificate

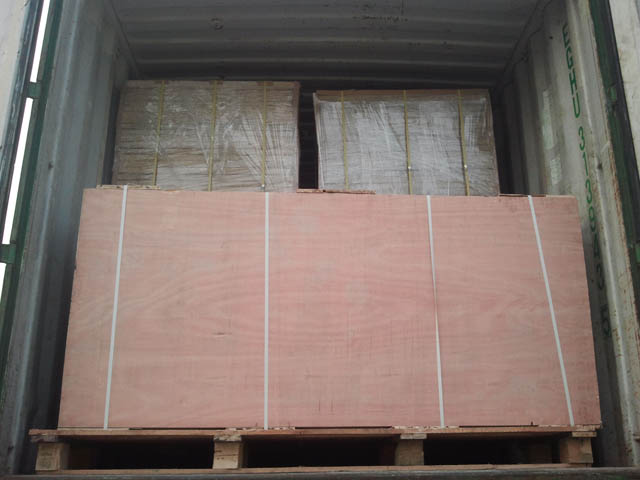

- Package

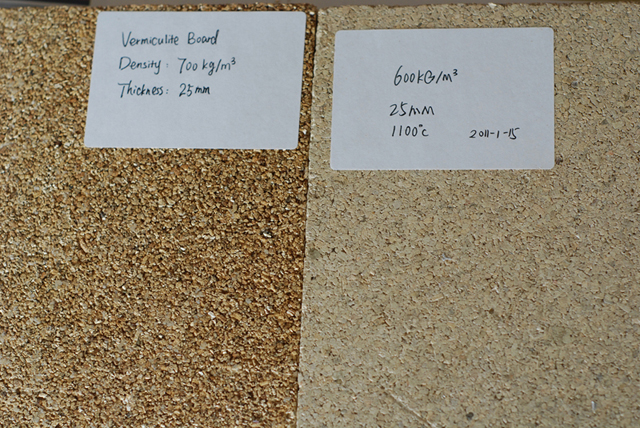

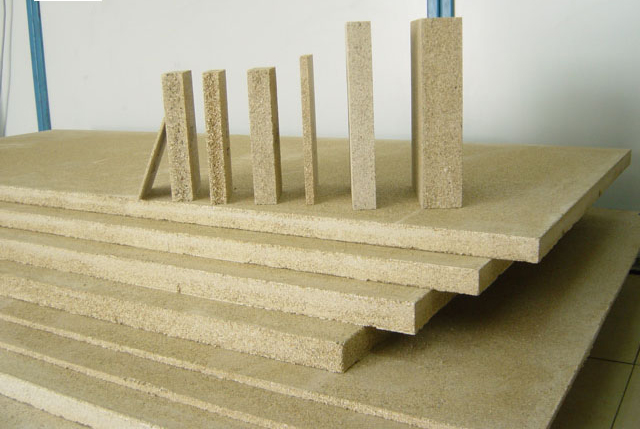

Vermiculite Board
Product Description
Characteristics: Fireproof, heat and sound insulation, damp proof, moisture absorption, lightweight, mildew proof, environmental-friendly etc.
Fields of application: Fireplace brick, electric heater, storage heater, furnace, stove, fireproof doors, ceiling, furniture, furnishing, platform for marine and vessel etc.
Detailed Product Description:
Process temperature: >1100degrees centigrade
Bending strength: 0.574 - 533MPa
Density: 300kg/M3 - 1100kg/M3
Compression strength: 0.690~4.90MPa
Thermal conductivity: Max. 0.20W/mK at 600 degrees centigrade
Max. 0.128W/mK at 34.51 degrees centigrade
The minimum thickness: 10mm
The maximum thickness: 80mm
The maximum width: 900mm
The maximum length: 2100mm
More Product Features
Standard: ISO9001:2000
Unit Price/Payment: T/T in advance or L/C at sight
Origin: china
Packing: wooden pallet
Min. Order: 1000pcs
Transportation: shipping
|
Raw materials
|
|
|
China
|
China
|
China
|
|
size of vermiculite
|
|
mm
|
0.7~1.4
|
0.7~1.4
|
0.7~1.4
|
|
Tolerance
|
Length
|
mm
|
<±1.5mm
|
<±1.5mm
|
<±1.5mm
|
|
|
width
|
|
<±1.5mm
|
<±1.5mm
|
<±1.5mm
|
|
|
Thickness
|
|
<±1.0mm
|
<±1.0mm
|
<±1.0mm
|
|
Specification
|
2100x900
|
|
|
|
|
|
|
2440x1220
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Maximum service temperature
|
|
℃
|
1250
|
1250
|
1250
|
|
Bulk density,dry
|
|
KG/M3
|
400
|
610
|
750
|
|
Compressive strength(EN 1094-5:1995)
@room temperature |
|
Mpa
|
1.93
|
2.9
|
3.2
|
|
Total porsoity (EN1094:1995)
|
|
%
|
71
|
58.1
|
57.7
|
|
Pyrometric cone equivalent
(ASTM C24-89 ORTON cones) |
|
℃
|
1200
|
1200
|
1200
|
|
Thermal conductivity (ASTM C-182)
|
|
|
|
|
|
|
|
|
W/(mXk)
|
0.08
|
0.46
|
0.49
|
|
Chemical analysis typical
|
|
|
|
|
|
|
silica
|
|
SiO2
|
37.98%
|
37.98%
|
37.98%
|
|
Titanium dioxide
|
|
TiO2
|
1.23%
|
1.23%
|
1.23%
|
|
Ferric oxide
|
|
Fe2o3
|
3.74%
|
3.74%
|
3.74%
|
|
alumina
|
|
Al2O3
|
11.69%
|
11.69%
|
11.69%
|
|
magnesium oxide
|
|
MgO
|
22.33%
|
22.33%
|
22.33%
|
|
calcium oxide
|
|
CaO
|
0.89%
|
0.89%
|
0.89%
|
|
sodium oxide
|
|
Na2O
|
1.48%
|
1.48%
|
1.48%
|
|
potassium oxide
|
|
K2O
|
5.50%
|
5.50%
|
5.50%
|
|
Loss on ignition 1025℃
|
|
LOI
|
8.00%
|
8.00%
|
8.00%
|
