Tincpro steel keel, we use hot dip galvanized strip as raw material, made of cold rolling process and architectural metal skeleton. Used as plaster board, gypsum board and other decorative finishes light weight board to do a non-load-bearing walls and roof of a building style decor.

Features :
1) made of corrosion resistant high-quality continuous hot-dip galvanized steel strip, the double-sided galvanization grammage exceed 100g/m2.
2) 50mm wide flange design makes it easier to fasten screw and reduce joint cracking
3)Rib reinforcement design for lateral flanges increases the rigidity of stud and reduces deformation, and can reach required stiffness without need of horizontal bracing support as in tradition lightweight steel framing partition system.
4) Artful unequal flange width design offers convenience for boxing and extending of studs. It is applicable to parts requiring reinforcement, like door frame.

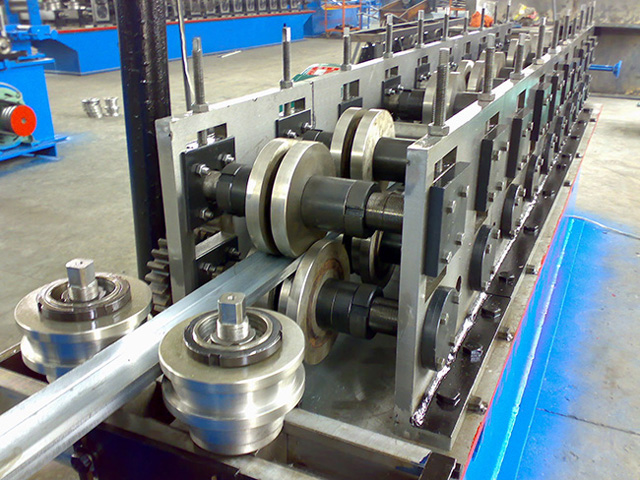

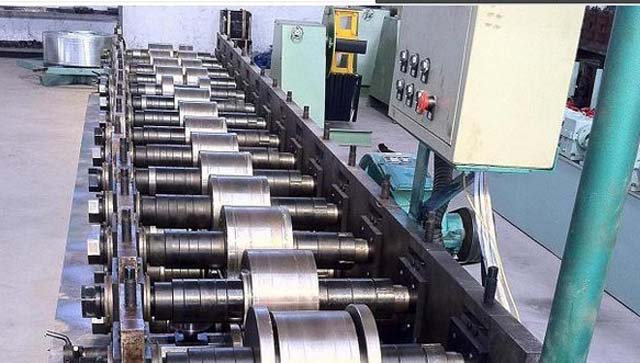

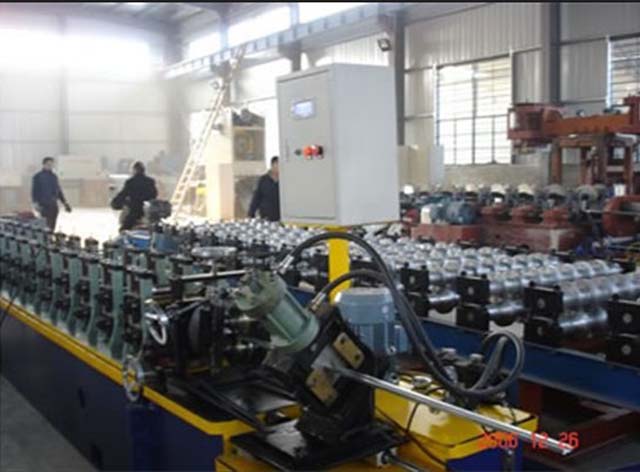

5)Fully imported Italian production line ensures high accuracy and minimum tolerances;
6) geometrical sizes designed according to Chinese architectural characteristics and standards.

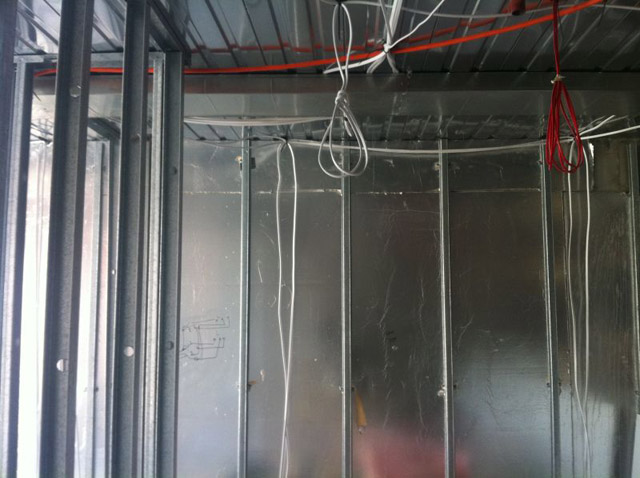

7) The pre-punched “H” opening in every certain distance offers convenience for laying of hidden pipes and ducts without affecting strength.

Technical data:
1) Raw material: 2mm Cold Roll Coil
2)Zinc coated progress is control by our own factory
3)Zinc Coated Level: 60g~200g
4)Thickness 0.4~1.2mm
5) Tensil Stress: 696.74MPa
6)Yeild Stress 669.48 Mpa
7)Hardness: 15HRC
8)Standard GB/T 11981-2001

Specifications:

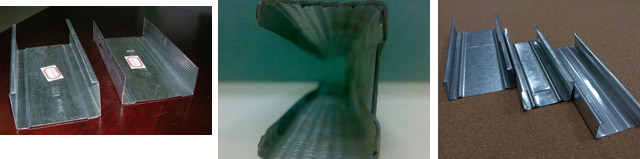

vertical channel stud:
1) QC 50 x 34X36 x 0.40, 0.45, 0.50, 0.60mm
2) QC75 x 34x36 0.35, 0.40, 0.45, 0.50, 0.60, 0.70mm
3) QC 45 x 34x36 x 0.50, 0.60, 0.70mm
4) QC 100/150 x 40 x 0.70, 1.0, 1.2mm,
5)QC91x31x0.6,0.7,1.0,1.2mm

horizontal track:
1) QU50 x 45 x 0.40, 0.45, 0.50, 0.60mm
2) QU75 x 45 x 0.35, 0.40, 0.45, 0.50, 0.60, 0.70, 0.80mm
3) QU100 x 45 x 0.50, 0.60, 0.70, 0.80mm
4) Qu150 x 50 x 0.70, 1.0, 1.2mm

Samples:

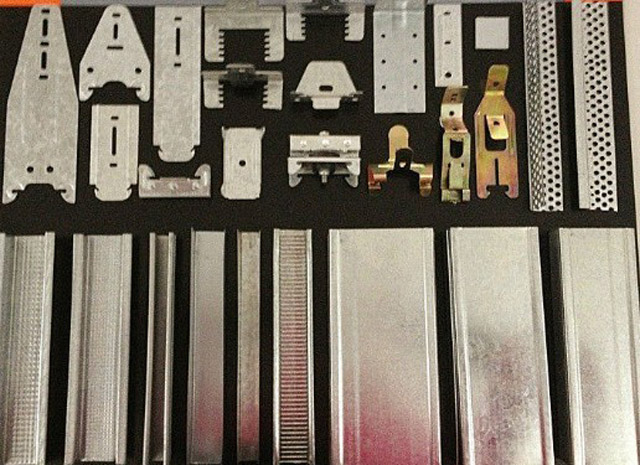

Steel Keel Accessories

	side mounted TCR Suspension Clip		TCR Suspension Clip
	Adjustable Direct Fix		Beta Fix
	length Beta Fix		Locking Key
	R0d Bracket		Right Angle Rod Bracket
	Direct Fix		concrete-screw fix
	concrete		Ceiling Bracket
	timber/steel-175		timber/steel-75
	swc3		Floor Pin
	5mm soft gal.susp.rod

1. Hot dip galvanized channel:
Carbon steel -shaping by machine(pressing, bending and punching)-surface treatment (hot dip galvanizing)
2. Cold galvanizing channel:
Carbon steel -shaping by machine(pressing, bending and punching)-surface treatment (cold galvanizing)
3. Hot galvanized sheet channel:
Hot dip galvanized sheet -shaping by machine(pressing, bending and punching)- no surface treatment

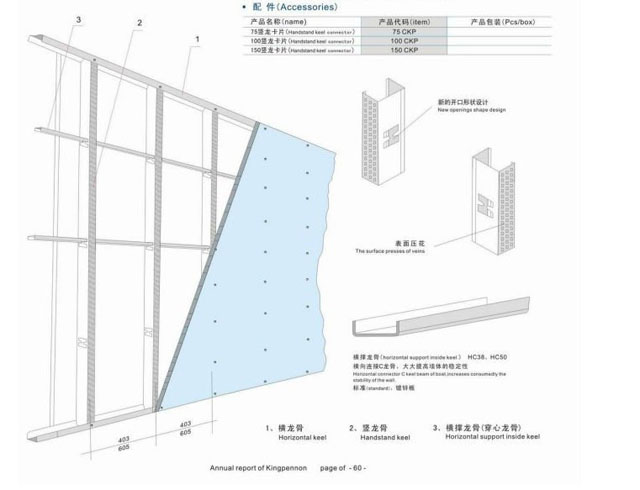

QC system

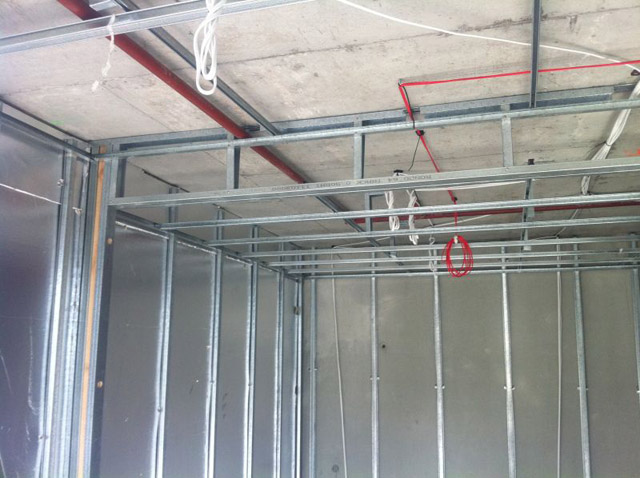

Widely applied in inner partition walls of various commercial and civil buildings like shopping mall, hotel, office building, residential building, etc.

For other size, pls contact us.
