Decorative Board

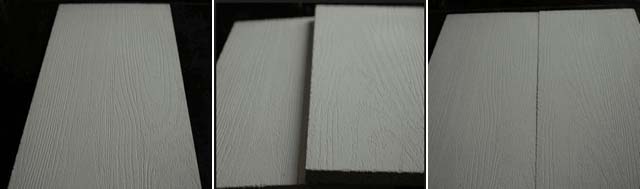

Wood grain MGO board is made of Magnesium oxide, Magnesium Chloride and fiber glass fabric, just use special mould making the surface as the wood grain, We have two patterns of wood grain and the back can be sanded. The nature color is magnesia white. Colors can be painted as clients' requirements. Wood grain boards can be used for interior wall.

Ingredient table

Name	Figure	Proportion
Magnesium Oxide		46%
Magnesium Chloride		31%
Perlite		5%
Woodchip		14%
Fiberglass/Composites		4%

Main features
  1. Fireproof: The fire-resistant ability is Grade A (GB8624)
  2. Damp resistant and water resistant, doesn't swell or deform in wet     condition
  3. Heat preservation, heat insulation and sound insulation
  4. Green and environmentally friendly, can be recycled
  5. Healthy, doesn't contain asbestos, formaldehyde or benzene
  6. Antisepsis, mothproof, ant-proof
  7. Light weight, high strength, long service life
  8. Flexible and tough to make various sculpts and modeling
  9. Applicable to other types of decorations and quadric processing
  10. It's convenient and prompt to construct, there isn't pollution of dust

Technical data:
1) Non-flammability: grade A GB8624
2) Swelling rate:0.34% GA160-1997
3) Heating contraction: 1.2%  GA160-1997
4) Water resistance: no condensation on the opposite side CNS13778
5) Impact resistance: does not crack or break   CNS13788
6) Density: 0.95g/cm3 GB/T7019-1997
7) Dry bending resistance: 16Mpa GB/T7019-1997
8) Wet bending resistance: 22Mpa GB/T7019-1997
9) Sound insulation: ≥44 dB (GBJ121-88)
10) Heat-transfer coefficient: 0.14w/mk (GB/T 13475-92)
11) Installation: Easy to cut, saw, nail, stick, paint and veneer
12) Environmental friendly: Free of asbestos, formaldehyde and ammonia

Specifications:
    1) Size: Max length 3660mm, Max width is 1220mm.
    2) Thickness: 3 to 25mm
    3) Other sizes can be cutted as clients' requirements.

Samles:

1. Cutting
Workers cut the board by knife when the machine send the board to the part, the machine will send the board to the next step after finished cutting.
2 Lifting
Workers lift the board to chassis when the board send to the end plate frame. Chassis must maintain two or more, we must leave time and space for repair board.
3 Curing gel
 When magnesium fire board stack to a certain height it should be centrally stored indoors curing, the weather temperature reaches above 15 ℃ curing can be stored in the workshop, if below 15 ℃ insulation measures should be in a good health shop store cure.
4  Exposing board
When magnesium fire board has good strength freezing up exposing plates, Weather Temperature 5-10 ℃ , without heating 2 days, spring 10 ℃ -20 ℃ one day, in summer about 30 ℃ ,12 hours to expose boards.
5  Storage health
6  cutting head trimming
7  Quality Inspection and warehousing


Tincpro decorative fireproof boards are mainly used in room, office building, hotel, market, hospital, airport ,subway, gymnasium, library, museum, theater, factory, building, computer laboratory, as interior wall system.

Function Board

    Tincpro Function board as standard MGO board, high quality MGO board and waterproof MGO board is used as base board, Normally is the main board of dry wall, Our board is eco friendly builder product and easy to install.

For other size, pls contact us.

Transportation:

   When delivery , the boards should be piled up in the way of board-to board , then it is suitable for overseas transportation and indoor store .
   The panels could not be stored outside or in the store near water . It must be stored in a smooth , no rain leaking , no dust and good ventilated warehouse .It should avoid moisture before used . Once it was affected with damp , it should be cleaned up right away and sent it to a well area for drying up. Otherwise it may be destroyed.
   Carried by one man is prohibited . The board should be carried by two men with both hands of them and taking the long edges horizontally or taking the short edges vertically .
