Description

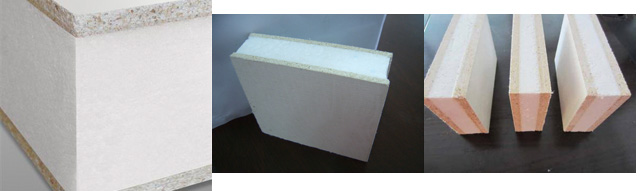

Structural Insulated Panel, also called Mgo SIP and Mgo Sandwich board. It consists of a sandwich of two layers of structural board with an insulation foam in between. Panel skins are magnesium oxide boards. Insulation core can be Expanded Polystyrene(EPS) and Extruded Polystyrene(XPS) and so on. These are structural sheaths that can be finished like drywall on the interior, and covered with siding materials or have stucco applied directly to the exterior of the panel. When the panel is used for basement or foundation walls, foundation spray can be applied directly to the surface.

Ingredient table

Name	Figure	Proportion
Magnesium Oxide		46%
Magnesium Chloride		31%
Perlite		5%
Woodchip		14%
Fiberglass/Composites		4%

Features:

   1)FAST construction, with less reliance on highly skilled trades.  ENERGY EFFICIENT - Up to 40% heat loss reduction vs stick built. Significant heating and cooling savings. Less temperature fluctuation, less drafty, provides an excellent sound barrier creating a more comfortable living environment.
   2)SUPERIOR structural strength to stick built. Performs better under extreme weather conditions - earthquakes, hurricanes, etc. Less material waste and handling. Superior wall strength. No nail pops. Cabinetry and pictures easier to hang.
   3)Interior and exterior walls can be finished without additional sheathing - eliminates costly steps and additional materials. Available with wood and grain outside wall finish.

Specification
1. MGO board thickness: 3-20mm
2. EPS core thickness: 15-250mm
3. XPS core thickness: 15-120mm
4. Max width: 1220mm; Max length: 3660mm
Standard size 1200*2400mm, 1200*2700mm, 1200*3000mm.
5. Connection can be Tongue & Groove, Camlock, two or four sides closed.

Samples:

1. Cutting
Workers cut the board by knife when the machine send the board to the part, the machine will send the board to the next step after finished cutting.
2 Lifting
Workers lift the board to chassis when the board send to the end plate frame. Chassis must maintain two or more, we must leave time and space for repair board.
3 Curing gel
 When magnesium fire board stack to a certain height it should be centrally stored indoors curing, the weather temperature reaches above 15 ℃ curing can be stored in the workshop, if below 15 ℃ insulation measures should be in a good health shop store cure.
4  Exposing board
When magnesium fire board has good strength freezing up exposing plates, Weather Temperature 5-10 ℃ , without heating 2 days, spring 10 ℃ -20 ℃ one day, in summer about 30 ℃ ,12 hours to expose boards.
5  Storage health
6  cutting head trimming
7  Quality Inspection and warehousing

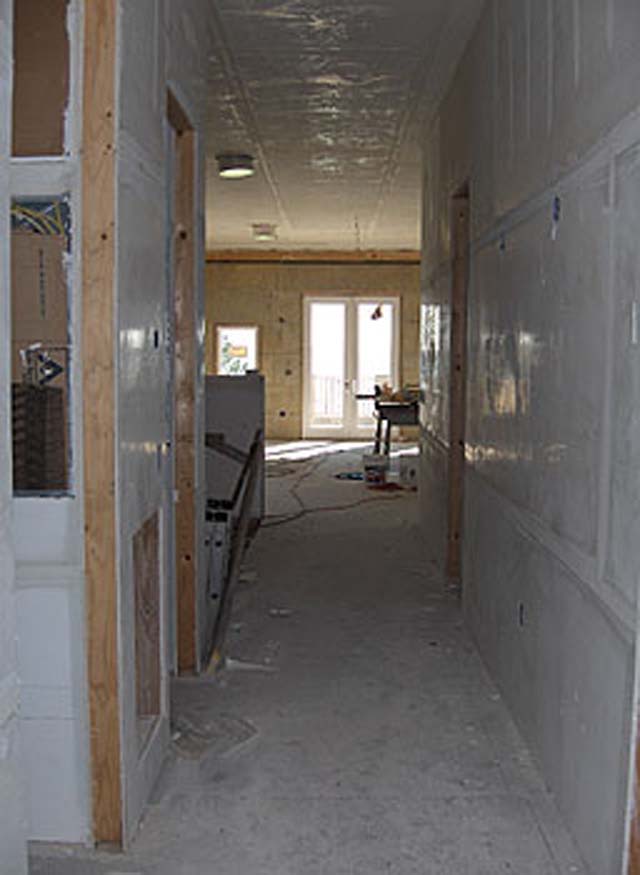

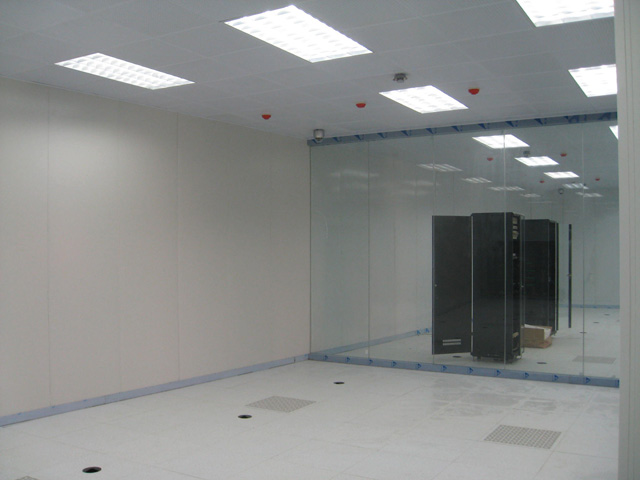

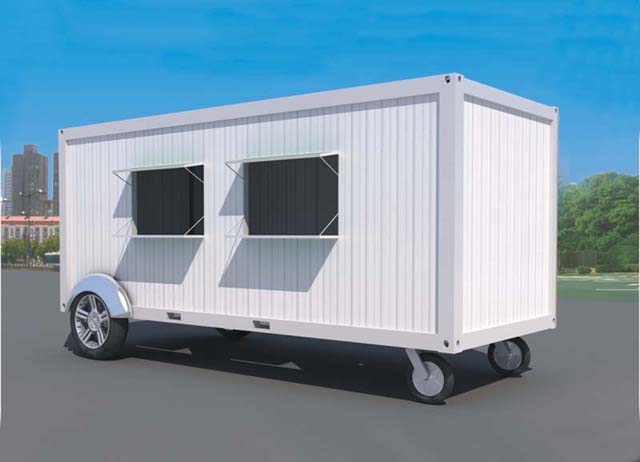

The flexibility of our building system is ideal for many applications including residential, industrial shops and warehouses, Ready to Move buildings and trailers, hotels, factories, aircraft hangars and apartments.

Function Board

    Tincpro Function board as standard MGO board, high quality MGO board and waterproof MGO board is used as base board, Normally is the main board of dry wall, Our board is eco friendly builder product and easy to install.

For other size, pls contact us.

Transportation:

   When delivery , the boards should be piled up in the way of board-to board , then it is suitable for overseas transportation and indoor store .
   The panels could not be stored outside or in the store near water . It must be stored in a smooth , no rain leaking , no dust and good ventilated warehouse .It should avoid moisture before used . Once it was affected with damp , it should be cleaned up right away and sent it to a well area for drying up. Otherwise it may be destroyed.
   Carried by one man is prohibited . The board should be carried by two men with both hands of them and taking the long edges horizontally or taking the short edges vertically .
