Decorative Board

Tincpro decorative board is used tincpro magnesium cement as substrate material, and compounded with high quality gluing melamine paper or melamine sheet on the surface. It combines the advantages of MgO board and melamine paper or melamine sheet , and is an innovative decorative and building material. This product provides a new choice for colorful space and fireproof material.

Purpose

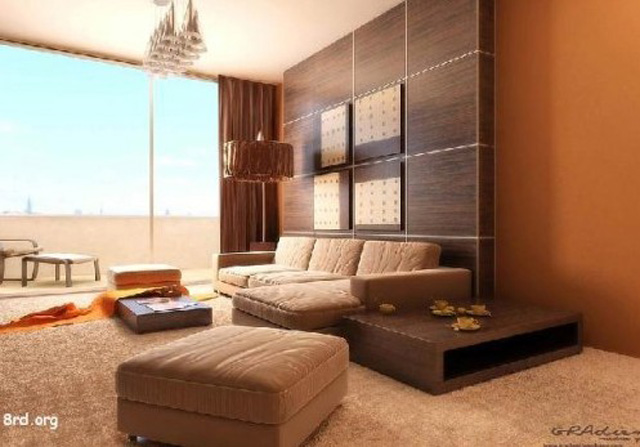

 Can be used as decorative wall and furniture with excellent effect in interior design.

Advantage
 A green material to replace wood board. not only create best perfect visual effective but also lower the cost of solid wood.

Ingredient table

Name	Figure	Proportion
Magnesium Oxide		46%
Magnesium Chloride		31%
Perlite		5%
Woodchip		14%
Fiberglass/Composites		4%

Features
   1. Non-flammability: GB8624 grade A
   2. Waterproof
   3. Good performance on anti-abration and heat resistant
   4. Impact resistant
   5. Clean appearance
   6. Good visual effect
   7. Healthy and environmental protection, 100% free of asbestos,
   8. easy to install, convenient, good appearance.

Technical data:
1) Non-flammability: grade A GB8624
2) Swelling rate:0.34% GA160-1997
3) Heating contraction: 1.2%  GA160-1997
4) Water resistance: no condensation on the opposite side CNS13778
5) Impact resistance: does not crack or break   CNS13788
6) Density: 0.95g/cm3 GB/T7019-1997
7) Dry bending resistance: 16Mpa GB/T7019-1997
8) Wet bending resistance: 22Mpa GB/T7019-1997
9) Sound insulation: ≥44 dB (GBJ121-88)
10) Heat-transfer coefficient: 0.14w/mk (GB/T 13475-92)
11) Installation: Easy to cut, saw, nail, stick, paint and veneer
12) Environmental friendly: Free of asbestos, formaldehyde and ammonia

Specifications:
   Common size: 1220*2440m
   Thickness:3-12mm
   Customized size can be accepted

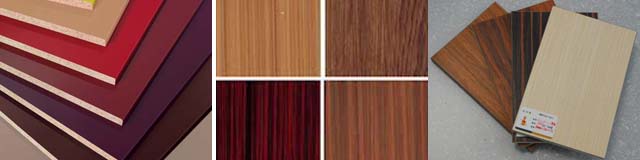

Samples

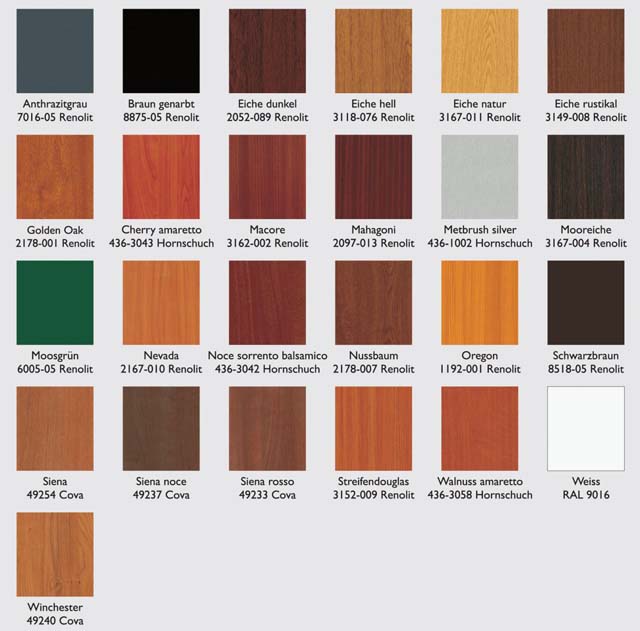

Patters showing:

Other designs also available, pls contact with us.

1. Cutting
Workers cut the board by knife when the machine send the board to the part, the machine will send the board to the next step after finished cutting.
2 Lifting
Workers lift the board to chassis when the board send to the end plate frame. Chassis must maintain two or more, we must leave time and space for repair board.
3 Curing gel
 When magnesium fire board stack to a certain height it should be centrally stored indoors curing, the weather temperature reaches above 15 ℃ curing can be stored in the workshop, if below 15 ℃ insulation measures should be in a good health shop store cure.
4  Exposing board
When magnesium fire board has good strength freezing up exposing plates, Weather Temperature 5-10 ℃ , without heating 2 days, spring 10 ℃ -20 ℃ one day, in summer about 30 ℃ ,12 hours to expose boards.
5  Storage health
6  cutting head trimming
7  Quality Inspection and warehousing

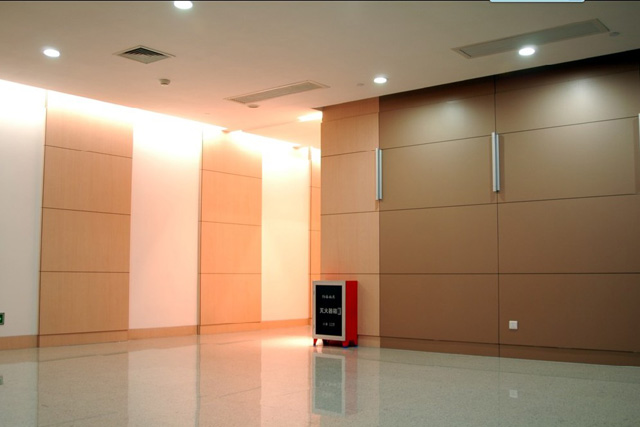

Tincpro decorative fireproof boards are mainly used in room, office building, hotel, market, hospital, airport ,subway, gymnasium, library, museum, theater, factory, building, computer laboratory, as interior wall system.

Function Board

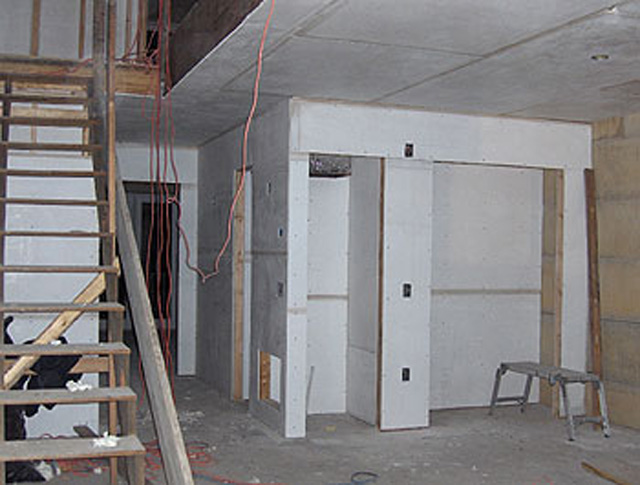

    Tincpro Function board as standard MGO board, high quality MGO board and waterproof MGO board is used as base board, Normally is the main board of dry wall, Our board is eco friendly builder product and easy to install.

For other size, pls contact us.

Transportation:

   When delivery , the boards should be piled up in the way of board-to board , then it is suitable for overseas transportation and indoor store .
   The panels could not be stored outside or in the store near water . It must be stored in a smooth , no rain leaking , no dust and good ventilated warehouse .It should avoid moisture before used . Once it was affected with damp , it should be cleaned up right away and sent it to a well area for drying up. Otherwise it may be destroyed.
   Carried by one man is prohibited . The board should be carried by two men with both hands of them and taking the long edges horizontally or taking the short edges vertically .
