Description
It uses gypsum as the main material, adding fiber, bonding agents, modifiers, formed by suppressing, mixing and drying.  It has the characteristics of fire  sound insulation, heat insulation, light-weight, high-strength, small shrinkage, and the stability of small, non-aging, anti-moth-eaten. It can use nails, sawing, planning, adhesive and other methods of construction. It is widely used in ceiling, walls, interior walls,

Ingredient table

Name	Figure
Gypsum powder
Gypsum retaining paper
fiber
citric acid
starch
vesicant
others

Features :
1)Produced by advanced German technology and equipment using high-purity gypsum as the raw material, Tincpro wallboard bears flat surface, accurate dimensions and assured quality.
2) The imported high-quality covering paper has high strength and good adhesive property with plaster core, thus guaranteeing the strength of plasterboard and laying a firm foundation for applying plaster putty or direct decoration.
3)Light weight and high strength, strong nail-pull resistance, good flatness, low water content, low expansion rate, good durability, favorable process ability and easy cutting.
4)Tapered edge offers easiness for jointing and the surface of joint is smooth and not easy to crack.
5) It can adjust indoor humidity to a certain extent and has passed green building material certification for its healthy and environmental property.

Technical data:
1) Weight per unit: 9.5mm: 7.7kg/m2.
12mm: 9.4kg/m2
15mm: 11.6kg/m2.
2) Rupture load: 9.5mm: Vertical: 513N.
                                              Horizontal: 171N.
                               12mm: Vertical: 684N.
                                              Horizontal: 213N.
                               15mm: Vertical: 781N.
                                              Horizontal: 281N.
3) Inner irradiation:ratio: ≤1.0
4) Outer irradiation ratio: ≤0.1

Specifications:
Standard size: 1200*2400mm
Length :1800mm to 3600mm
Width :1200mm&1220mm
Thickness :7mm to 15mm
Edge :Square Edge and Tapered Edge

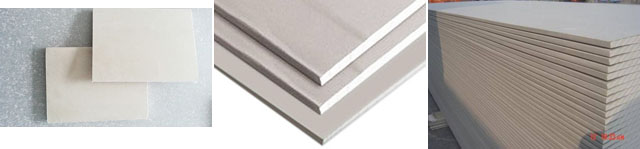

Samples:

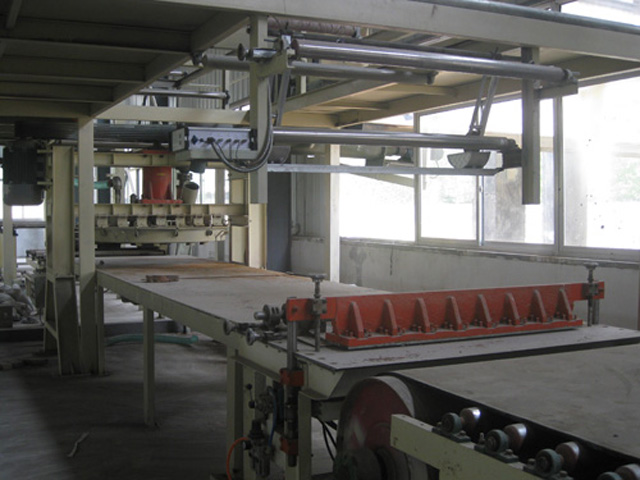

1 Ingredients section

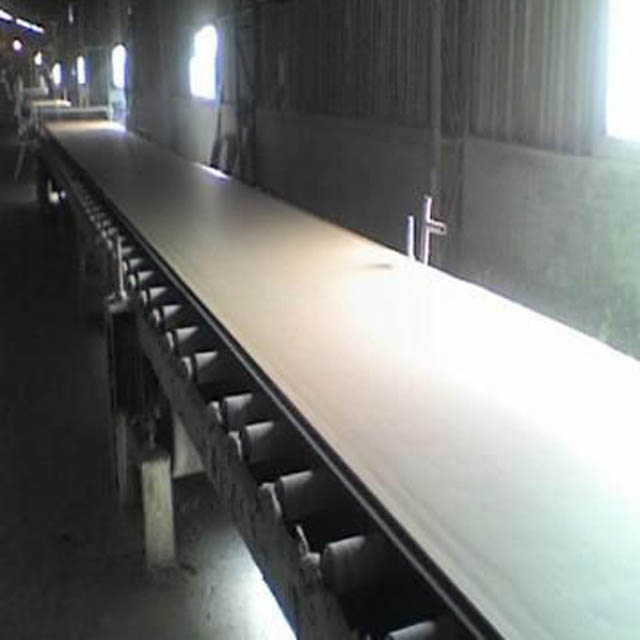

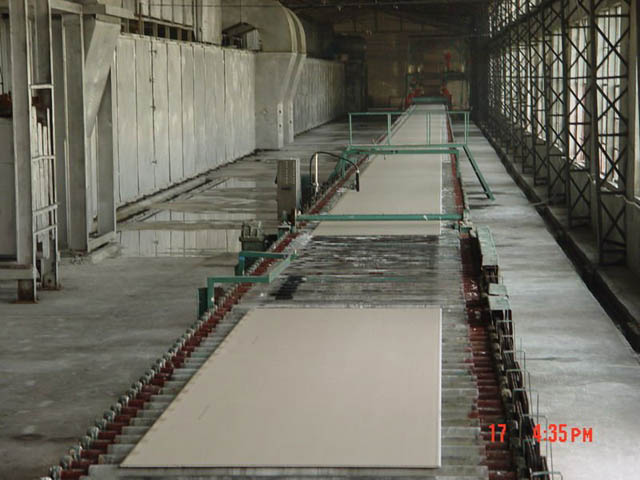

2 Forming section

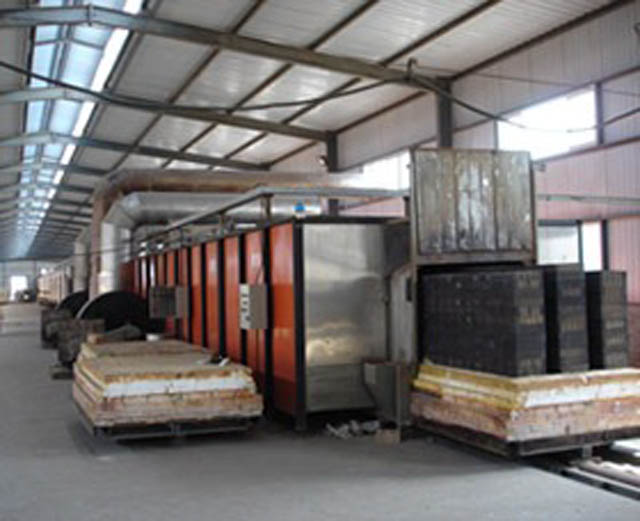

3 Drying section
4 Trimming , stacking section
5 Decorative veneer section

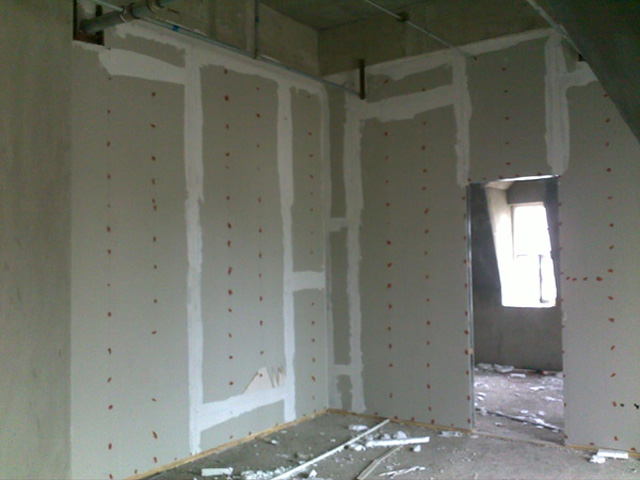

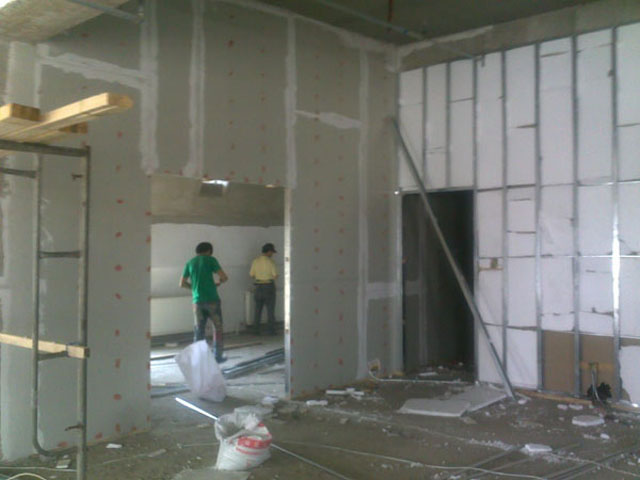

- Widely used for partition systems and lining systems in civil, commercial and industrial buildings


For other size, pls contact us.

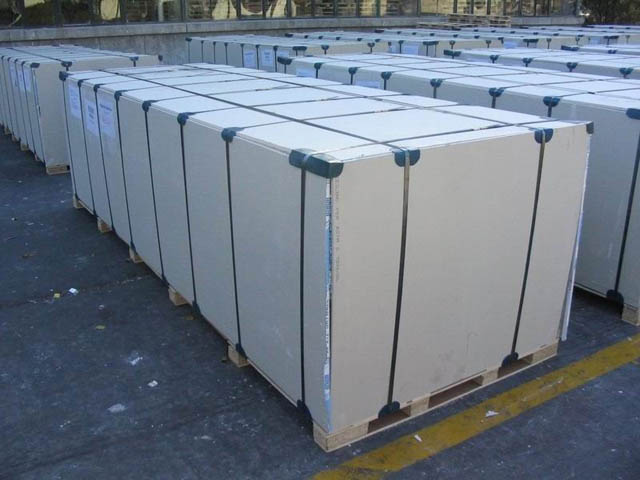

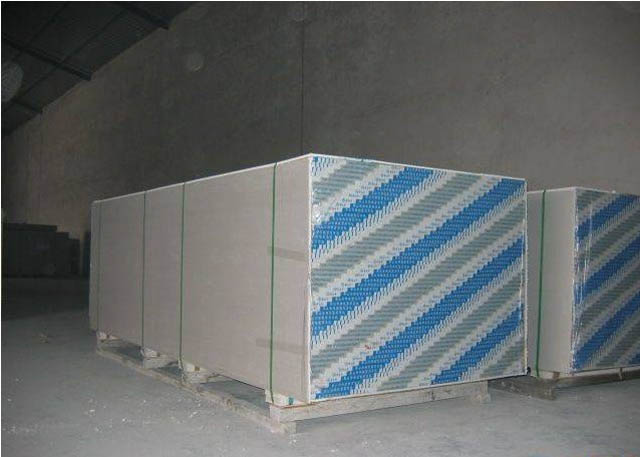

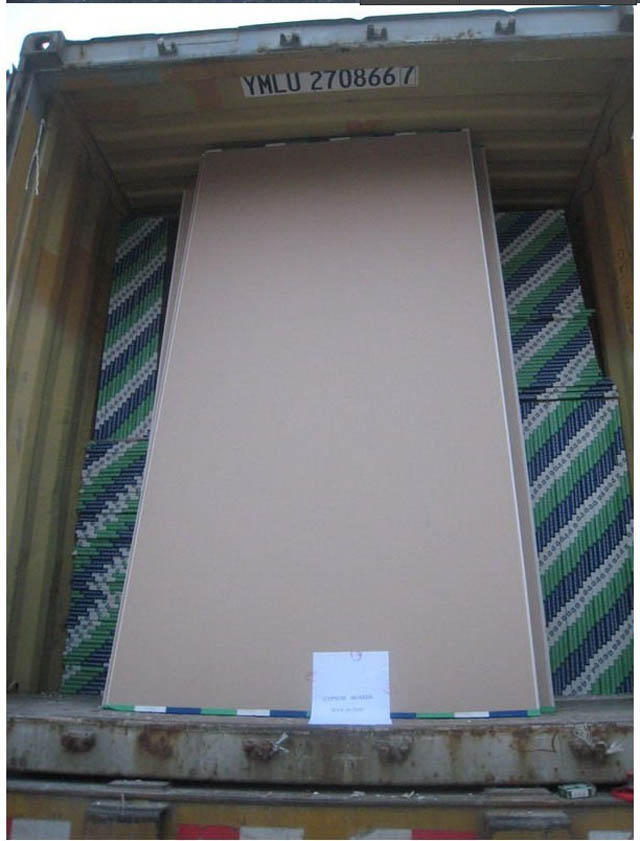

   When delivery , the boards should be piled up in the way of board-to board , then it is suitable for overseas transportation and indoor store .
   The panels could not be stored outside or in the store near water . It must be stored in a smooth , no rain leaking , no dust and good ventilated warehouse .It should avoid moisture before used . Once it was affected with damp , it should be cleaned up right away and sent it to a well area for drying up. Otherwise it may be destroyed.
   Carried by one man is prohibited . The board should be carried by two men with both hands of them and taking the long edges horizontally or taking the short edges vertically
