Description
It uses gypsum as the main material, adding fiber, bonding agents, modifiers, formed by suppressing, mixing and drying.  It has the characteristics of fire  sound insulation, heat insulation, light-weight, high-strength, small shrinkage, and the stability of small, non-aging, anti-moth-eaten. It can use nails, sawing, planning, adhesive and other methods of construction. It is widely used in ceiling, walls, interior walls,

Ingredient table

Name	Figure
Gypsum powder
Gypsum retaining paper
fiber
citric acid
starch
vesicant
others

Features :
1) Produced by advanced German technology and equipment using high-purity gypsum as the raw material, Tincpro fireproof board bears flat surface, accurate dimensions and assured quality.
2) The imported high-quality original wood pulp covering paper has smooth face and high strength.
3)Light weight and high strength, strong nail-pull resistance, good flatness, low water content, low expansion rate, good durability, favorable process ability and easy cutting.
4)Tapered edge offers easiness for jointing and the surface of joint is smooth and not easy to crack.
5) It can adjust indoor humidity to a certain extent and has passed green building material certification for its healthy and environmental property.
6) Easy to install and good appearance.


Technical data:
1)Weight per unit: 9.5mm: 8.3kg/m2.
12mm: 9kg/m2
15mm: 11.8 kg/m2
2)Rupture load: 9.5mm: Vertical: 513N.
                                             Horizontal: 171N.
                             12mm: Vertical: 684N.
                                             Horizontal: 213N.
                              15mm: Vertical: 781N.
                                             Horizontal: 281N.
3)Inner irradiation ratio: ≤1.0
4)Outer irradiation ratio: ≤0.1

Specifications:
Standard size: 1200*2400mm
Length :1800mm to 3600mm
Width :1200mm&1220mm
Thickness :7mm to 15mm
Edge :Square Edge and Tapered Edge

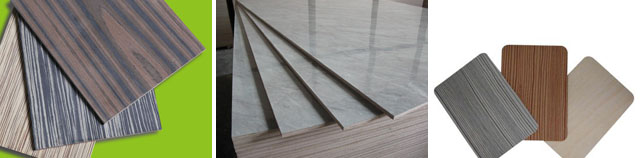

Samples:

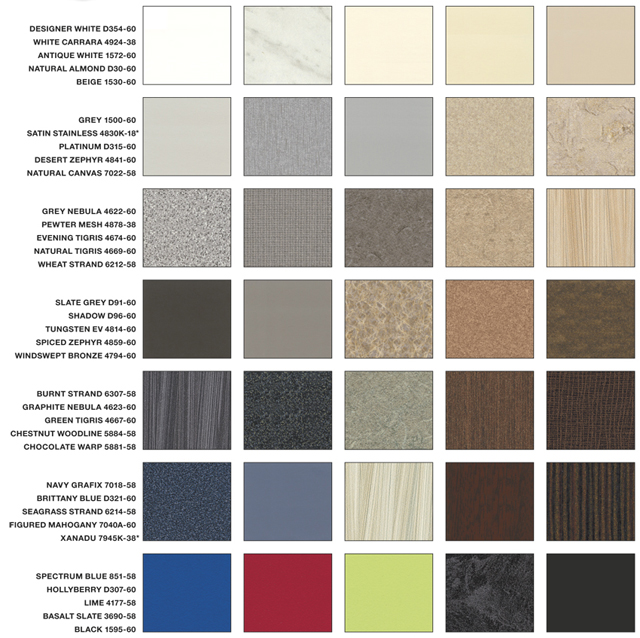

Patters showing:

Other designs also available, pls contact with us.

1 Ingredients section
2 Forming section
3 Drying section
4 Trimming , stacking section
5 Decorative veneer section

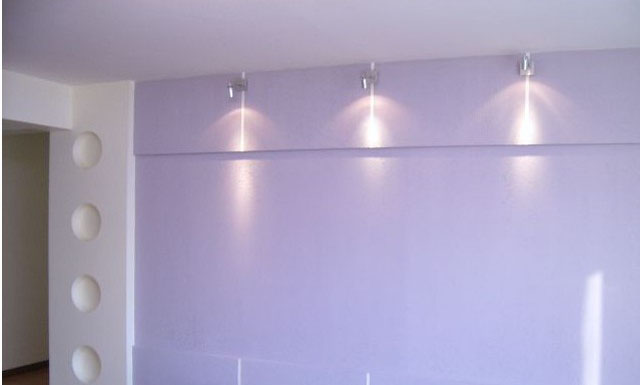

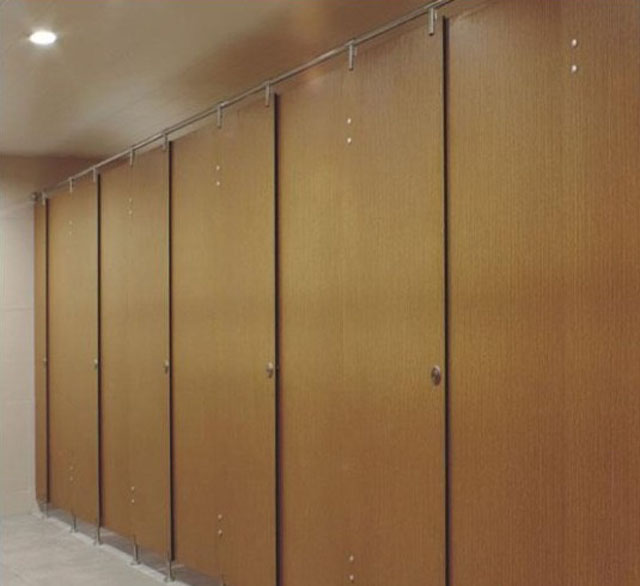

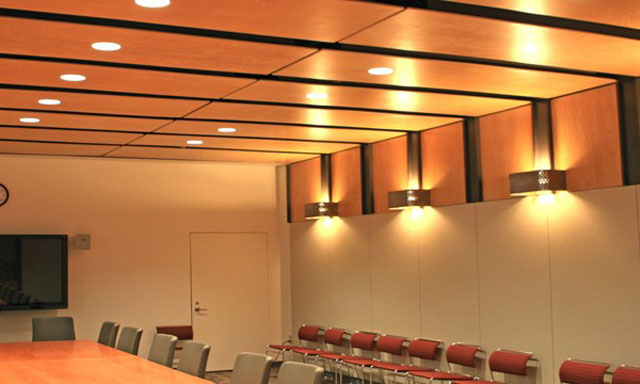

Tincpro decorative gypsum boards are mainly used in room, office building, hotel, market, hospital, airport ,subway, gymnasium, library, museum, theater, factory, building, computer laboratory, as interior wall system.

For other size, pls contact us.

   When delivery , the boards should be piled up in the way of board-to board , then it is suitable for overseas transportation and indoor store .
   The panels could not be stored outside or in the store near water . It must be stored in a smooth , no rain leaking , no dust and good ventilated warehouse .It should avoid moisture before used . Once it was affected with damp , it should be cleaned up right away and sent it to a well area for drying up. Otherwise it may be destroyed.
   Carried by one man is prohibited . The board should be carried by two men with both hands of them and taking the long edges horizontally or taking the short edges vertically
