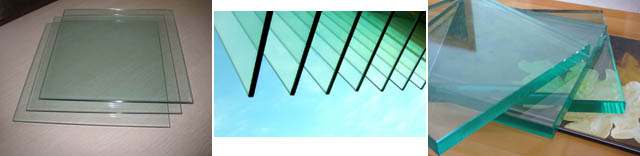

Clear Float Glass
Clear Float Glass of high quality includes PDP Glass, automobile glass, mirror glass, coating glass etc. It has been widely recognized by customers.
- Description

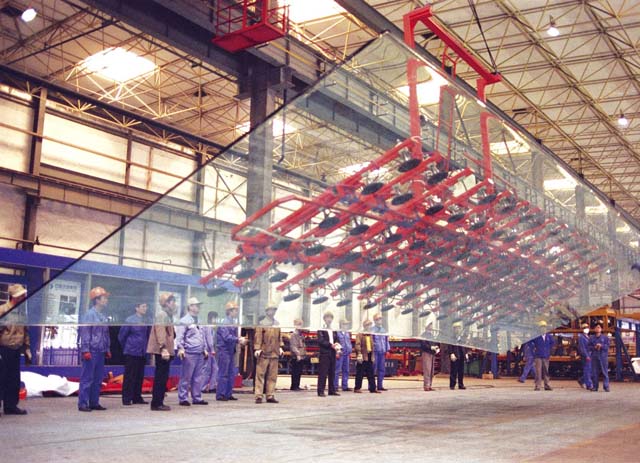

- Production line
- Installtion
- Application
- Certificate
- Package
Clear Float Glass of high quality includes PDP Glass, automobile glass, mirror glass, coating glass etc. It has been widely recognized by customers.
Features:
1. Good Panel Quality
2. Excellent Optical Performance
3. Complete Specifications
4. Easy to be processed (being tempered, coated, mirror-made, etc.)
Optical Parameters:
|
Thickness
(5mm) |
Visible Light Transmittance
|
Visible Light Reflectivity
|
Solar Transmittance
|
Solar Reflectivity
|
Visible-infrared Transmittance
|
Ultraviolet Transmittance
|
|
2mm
|
90.69
|
8.3
|
87.22
|
7.9
|
84.15
|
83.44
|
|
2.5mm
|
90.47
|
8.3
|
86.14
|
7.8
|
82.31
|
81.97
|
|
2.8mm
|
90.34
|
8.3
|
85.51
|
7.7
|
81.22
|
81.15
|
|
3mm
|
90.25
|
8.3
|
85.09
|
7.7
|
80.51
|
80.62
|
|
3.2mm
|
90.17
|
8.3
|
84.67
|
7.7
|
79.80
|
80.11
|
|
4mm
|
89.82
|
8.3
|
83.04
|
7.6
|
77.03
|
78.18
|
|
5mm
|
89.39
|
8.2
|
81.07
|
7.4
|
73.71
|
76.02
|
|
6mm
|
88.96
|
8.2
|
79.17
|
7.3
|
70.54
|
74.08
|
|
8mm
|
88.31
|
8.1
|
76.51
|
7.1
|
66.14
|
70.60
|
|
10mm
|
87.47
|
8.1
|
73.61
|
6.9
|
61.56
|
67.15
|
|
12mm
|
86.25
|
8.0
|
68.53
|
6.6
|
53.09
|
66.23
|
Physical Performance:
|
Density
|
2.5g/cm2
|
|
Linear Coefficient of Expansion: 25-300℃
|
8.6 x 10-6
|
|
Softening Point
|
732℃
|
|
Annealing Point
|
544℃
|
|
Strain Point
|
504℃
|
|
(-18-66℃) Hemispherical Emissivity
|
0.84
|
|
Specific Heat (0-100℃)
|
0.205
|
|
Thermal Conductivity (49℃) (watt/m2/k)
|
36.9
|
Mechanical Performance：
|
Modulus of Elasticity (Young’s modulus)
|
10.6E6 psi(73.1Gpa)
|
|
Modulus of Rupture (Tensil Strength-ultimate)
|
6000psi(41.4Mpa)
|
|
Knoop Hardness
|
470kgf/mm2
|
Specification
|
Thickness:
|
3-12mm
|
|
Size:
|
1830*2134mm; 1830*2440mm; 1830*650mm;
1650*2134mm; 1650*2440mm; 3660*2134mm; 3660*2440mm; 3300*2134mm; 3330*2440mm; 3300*5000mm;3300*6000mm;3300*6500mm; 3050*2134mm; 1500*2000mm; 920*1016mm; Customized Size |
