Fiber cement board: Fiber cement boards (also known as wearing a stack of plates) composed of Portland cement, plant fibers, fine quartz sand and the water formed by the manufacturing, does not contain asbestos, glass fiber and formaldehyde.
Description
Fiber cement board: Fiber cement boards (also known as wearing a stack of plates) composed of Portland cement, plant fibers, fine quartz sand and the water formed by the manufacturing, does not contain asbestos, glass fiber and formaldehyde. This product provides superior physical and chemical properties of all similar products, it has the appearance of wood materials and excellent features, and fire safety, do not rot, no deformation, almost no maintenance.
Ingredient table
Name
|
Figure
|
Pure quartz powder
|
![]() |
Quick lime
|
![]() |
Plant fiber
|
![]() |
Portland
|
![]() |
Dispersant
|
![]() |
others
|
|
Main features
1)Beautiful appearance
2)Good durability
3)Excellent fireproof and damp proof performance
4)Anti-cold and high temperature resistance
5)Low expansion rate, low contractibility, no shape changing
6)Being easy to be processed and fixed
7)Environmental protection type
8)After the special treatment for the surface, the embossed board pattern looks nature and real . Also, it can be painted with different colors.
2)Color : Grey and spray-painted color
3)Bending Strength : >15 MPa
4)Impact Resistance : ﹥7 KJ/m²
5)Water Content : ≤10
6)Water Absorption : ≤28
7)Fire Resistance : BS 476 part 20&22: 1987
8)Thermal Conductivity : Average ≤0.2W/MK
9)Flame-proof: resistant to combustion at 800 degree and remains flameless at 1, 200°
Standard Size :1220*2440 or 1200*2400(mm)
Max width: 1220 mm
Max Length: 3000 mm
Thickness: 3-30 mm

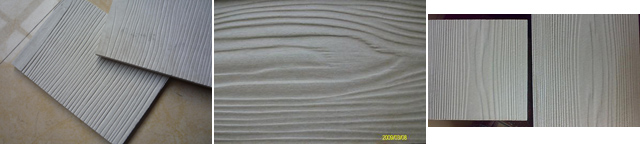

Samples:
We make the raw material into a wet sheet and then through high temperature and high pressure autoclave for more than 10 hours by advanced technology. That it will compose a special fiber cement Board.
There is no asbestos, brucite and meerschaum in the raw materials and the formulations at all.
Tincpro decorative fiber cement boards are mainly used in room, office building, hotel, market, hospital, airport ,subway, gymnasium, library, museum, theater, factory, building, computer laboratory, as interior wall system.
Specification
|
Loading quantity (PCS/20GP) packing in pallet
|
1220*2440*4
|
1120
|
1220*2440*6
|
760
|
1220*2440*8
|
560
|
1220*2440*10
|
456
|
1220*2440*12
|
384
|
1220*2440*15
|
296
|
1220*2440*5
|
880
|
1220*2440*9
|
504
|
1220*2440*18
|
240
|
For other size, pls contact us.
When delivery , the boards should be piled up in the way of board-to board , then it is suitable for overseas transportation and indoor store .
The panels could not be stored outside or in the store near water . It must be stored in a smooth , no rain leaking , no dust and good ventilated warehouse .It should avoid moisture before used . Once it was affected with damp , it should be cleaned up right away and sent it to a well area for drying up. Otherwise it may be destroyed.
Carried by one man is prohibited . The board should be carried by two men with both hands of them and taking the long edges horizontally or taking the short edges vertically
