Description

Calcium silicate board: calcium silicate boards (also known as wearing a stack of plates) composed of Portland cement, plant fibers, fine quartz sand and the water formed by the manufacturing, does not contain asbestos, glass fiber and formaldehyde. This product provides superior physical and chemical properties of all similar products, it has the appearance of wood materials and excellent features, and fire safety, do not rot, no deformation, almost no maintenance.

Ingredient table

Name	Figure
Pure quartz powder
Quick lime
Plant fiber
Calcium silicate
Dispersant
others

 Features :
1).It is durable.
More than 70% of the composition is same as granite, more than 10% same as marble.
2).High strength.
The lowest strength (in parallel direction) is ≥5.5Mpa while the highest strength (in cross direction) ≥7Mpa. It meets the installation and transportation requirement of the civil building. Both its flexibility and bending strength are higher than the international famous brand of calcium silicate board. Their performance is as well as the international brands of CSB all over the world.
3).Light weight.
Its highest density is ≤0.95g/cm3. It can be used in new buildings. There is no need to take additional dead load for both partition and ceiling of old buildings into account when it uses the panel for refashion. It won’t affect its original construction.
4).Low thermal conductivity in normal and high temperature.
It makes the loss and expense of air conditioner and warm gas in the building decreased for its good thermal insulation. The outstanding high temperature thermal insulation performance has guaranteed the staff and belongings security by cutting fire and thermal conducting .
5).High fireproof temperature.
The product can stand the temperature up to 1200℃.
6).High fire rating.
The reasonable fireproof system application design may reach the fire rating of partition to be 240 minutes and fire rating ceiling to be 80 minutes which meets the request in 4 hours fire rating for partition and 1 hour fire rating for ceiling around the world. Their performance is as well as the international brands of calcium silicate board all over the world.
7).Because of its excellent anti-high temperature and anti-crack, it becomes the professional fireproof product and its performance of fire rating is equal to other international brands of calcium silicate board .
8).Low density.
It is suitable for ceiling because of its light structures .
9).Incombustible material.
Meeting the standard of GB 8624-2006 and BS 476 from UK and reaching the grade A in incombustibility test, which is the guarantee of fire proof.
10).Inorganic material.
Its fire proof, anti fungus and mould proof are good for the health of the user.

Technical data:
1) Density: ≤0.95 g/cm³
2) Thermal conductivity: ≤0.20 W/(m•k)
3) Water contain: ≤10%
4) Moisture movement: ≤0.25%
5) Incombustibility: GB 8624-2006 Class A1, BS 476 part 4,6 and 7
6) Bending Strength: Paralle l≥7.0 Mpa. Cross ≥5.5 Mpa.
7) Asbestos contain: 100% asbestos free
8) Radioactivity: ＜1.0Ira

Specifications:
Standard Size :1220*2440 or 1200*2400（mm）
Max width: 1220 mm
Max Length: 3050 mm
Thickness: 9.12,15,18,20,25mm

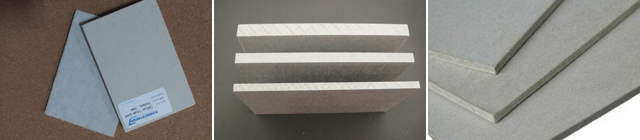

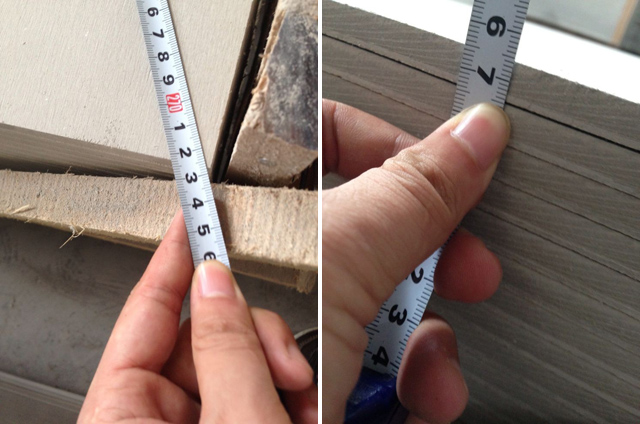

Samples:

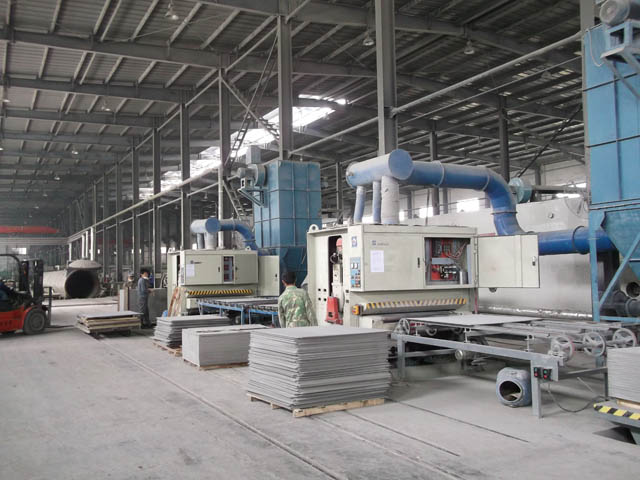

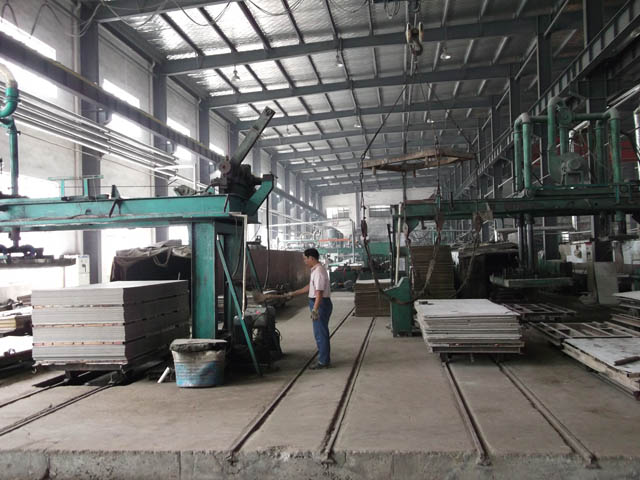

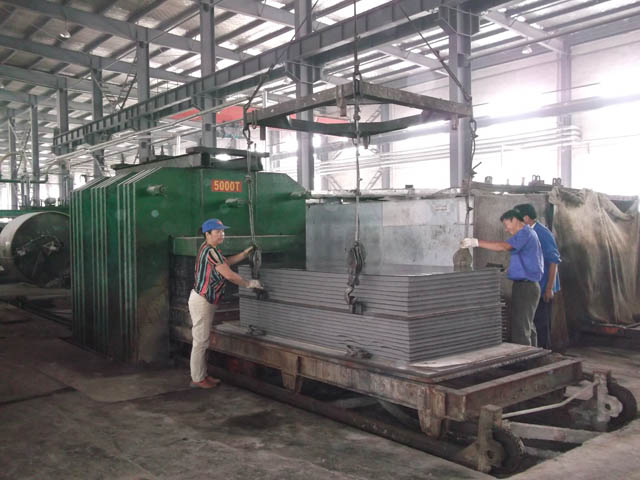

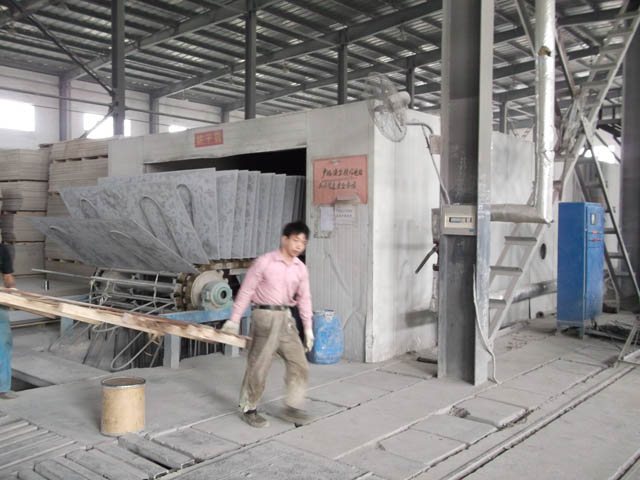

We make the raw material into a wet sheet and then through high temperature and high pressure autoclave for more than 10 hours by advanced technology. That it will compose a special fiber cement Board.
There is no asbestos, brucite and meerschaum in the raw materials and the formulations at all.

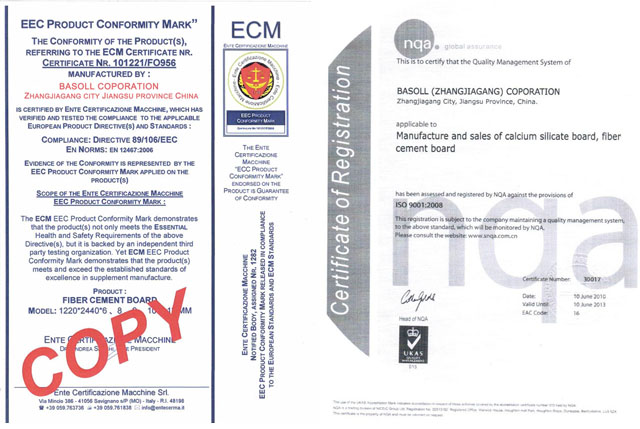

QC system

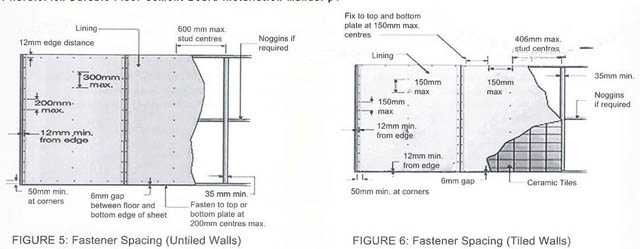

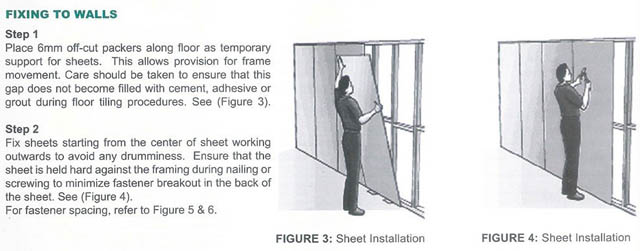

     Tincpro calcium silicate board can be used in system of partition.

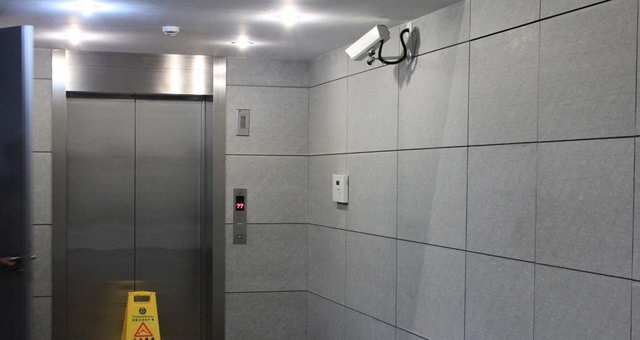

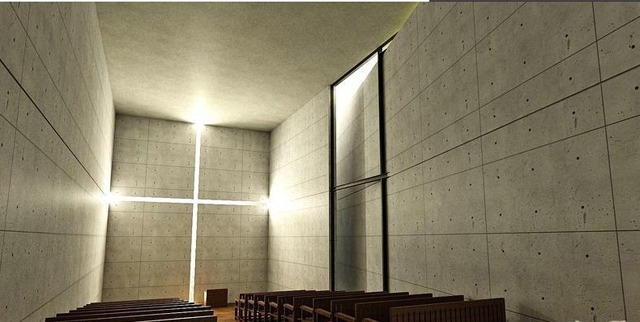

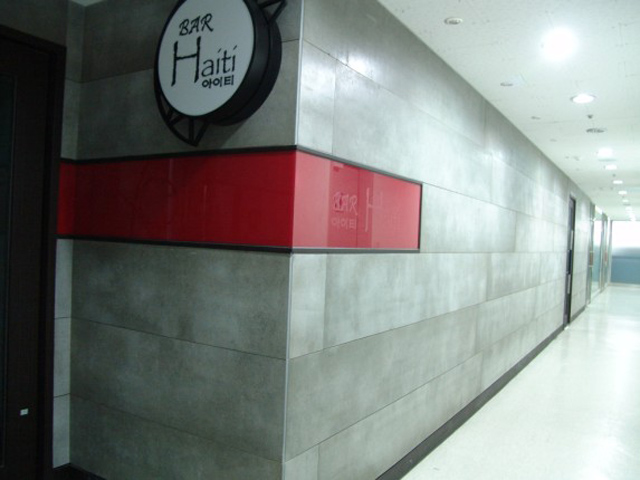

     The smooth surface of board can improve the decorative effect of buildings. It can be used in both new and old buildings.
     Tincpro calcium silicate board can be used in room, hospital, factory and lab etc.

For other size, pls contact us.

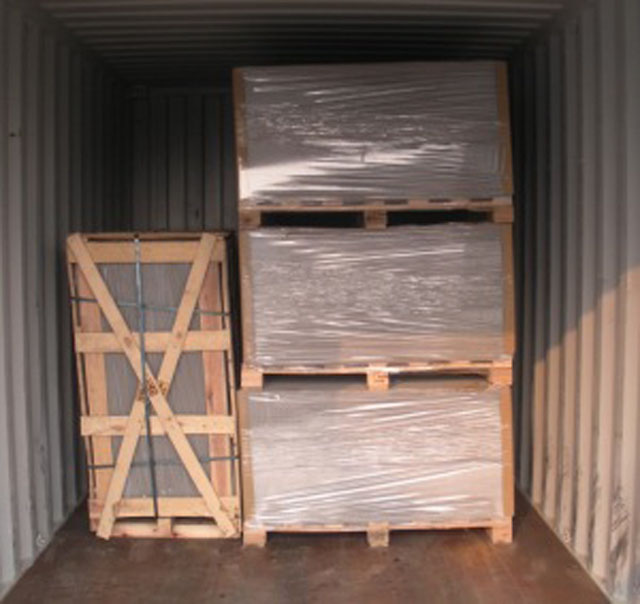

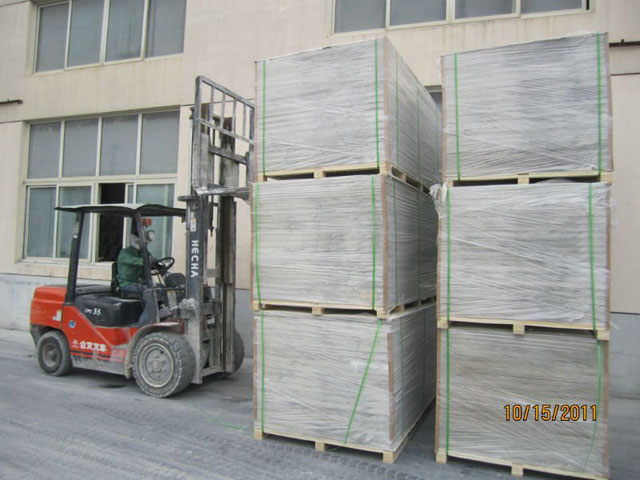

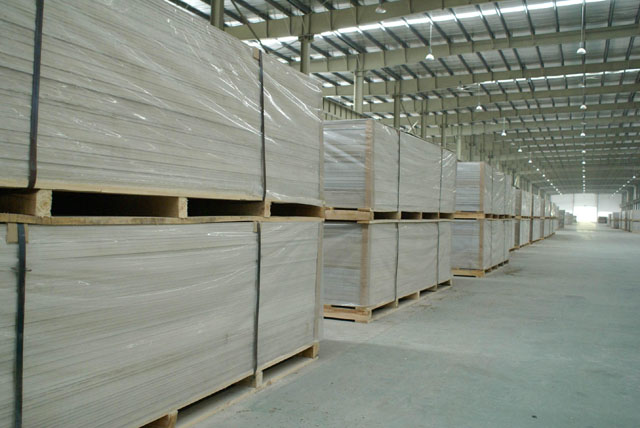

When delivery , the boards should be piled up in the way of board-to board , then it is suitable for overseas transportation and indoor store .

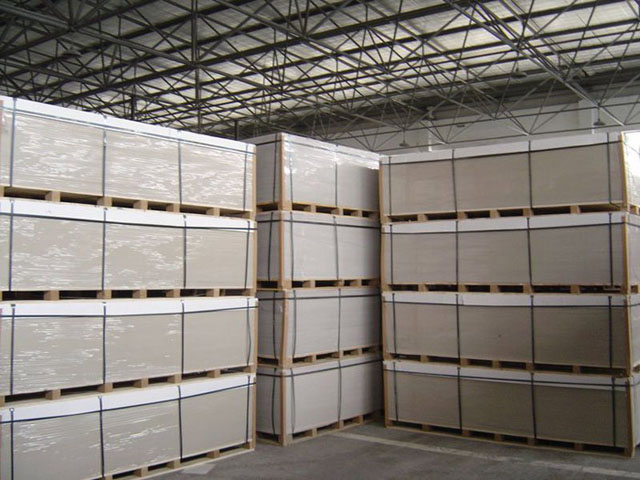

   The panels could not be stored outside or in the store near water . It must be stored in a smooth , no rain leaking , no dust and good ventilated warehouse .It should avoid moisture before used . Once it was affected with damp , it should be cleaned up right away and sent it to a well area for drying up. Otherwise it may be destroyed.
   Carried by one man is prohibited . The board should be carried by two men with both hands of them and taking the long edges horizontally or taking the short edges vertically
