Aluminum Ceiling Tile
High quality aluminum ceiling tile
- Description
- Production line

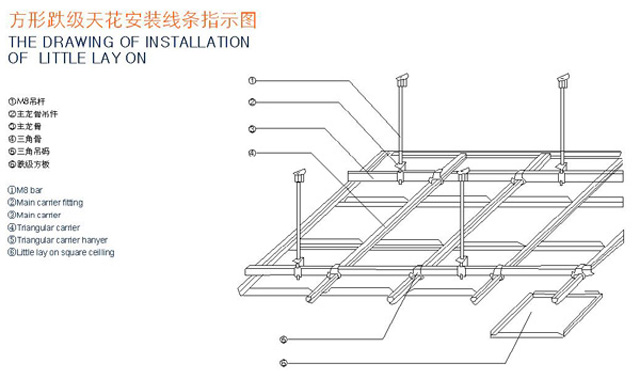

- Installtion
- Application
- Certificate
- Package
ALUMINUM CEILING TILES
Specifications
High quality aluminum ceiling tile
1.Size: 600x600mm
2.Thickness:0.6-09
1.Size: 600x600mm
2.Thickness:0.6-09
|
High quality aluminum ceiling tile
|

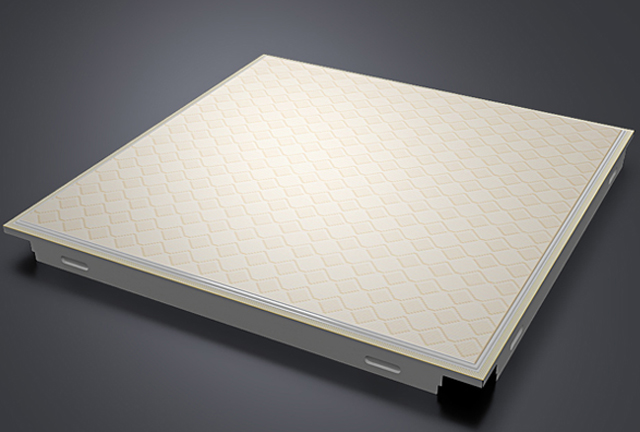

Product:
|
Clip-in aluminum ceiling
|
|
Size:
|
300*300mm,600*600mm,300*600mm,300*1200mm,
600*1200mm or customized, |
|
|
height:
|
20mm,27mm
|
|
|
Thickness:
|
0.4mm,0.5mm,0.6mm,0.7mm,0.8mm,0.9mm,1.0mm
|
|
|
Powder coating thickness:
|
During 0.06mm to 0.08mm(average thickness 0.06mm)
|
|
|

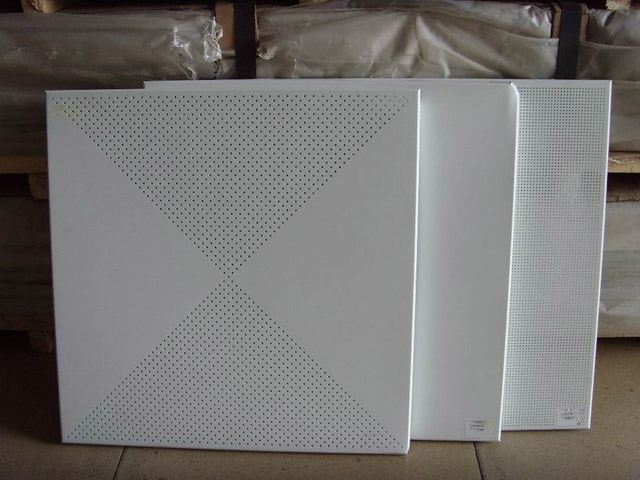

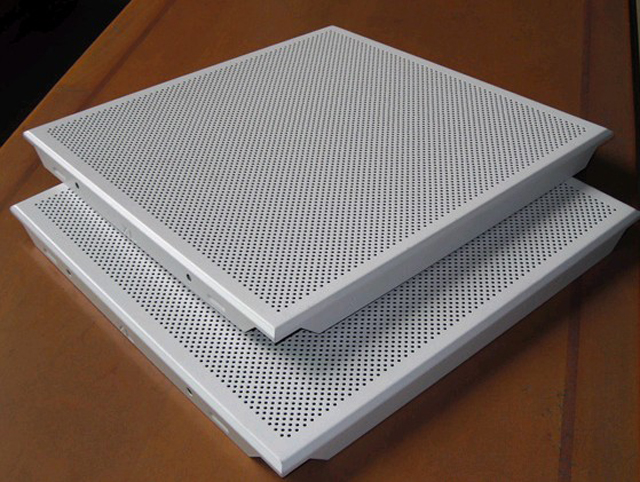

Pattern:
|
Plain or perforated
|
|
|
Perforation Dia:
|
Φ0.8mm, Φ1.8mm, Φ2.3mm,Φ3.0mmetc.
|
|
|
Colour:
|
Refer to RAL Color chart
|
|
|
coating:
|
Polyester powder, PE coated, PVDF Coated
|
|
|
Packing:
|
30 pcs/caron;in accordance with ceiling size
|
|
|
Packing Carton:
|
615×320×610; in accordance with size
|
|
|

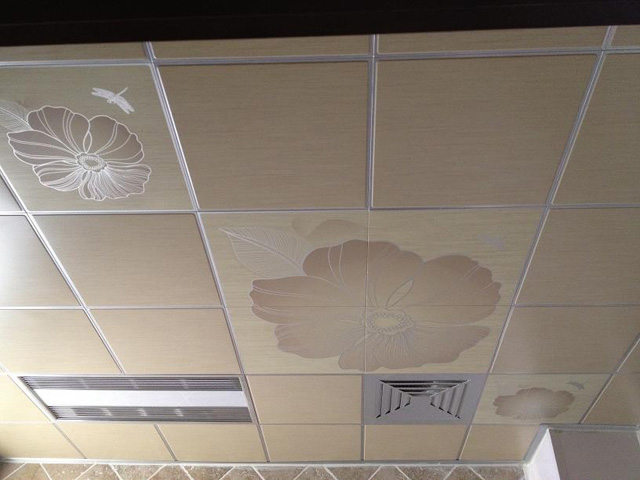

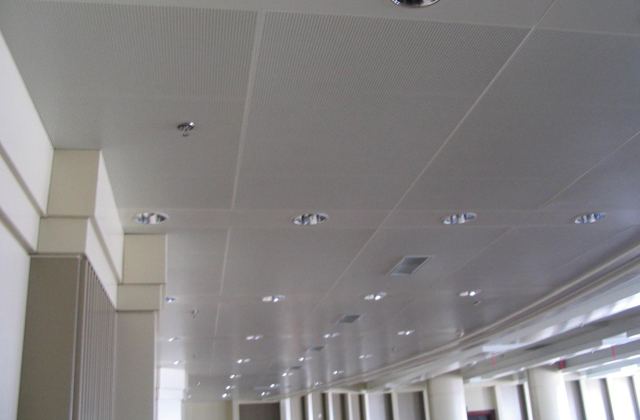

Application:
|
Hotel, office, station, hospital, etc.
|
|
|

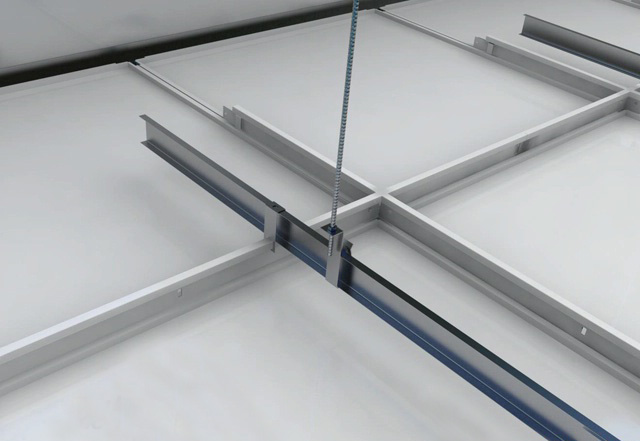

Accessories for Clip in ceiling
|
Triangle Keel: 1.7m/m2
Hanger: 3 pieces/3m Connector: 0.4 pieces/m2 |
|
|
High quality aluminum ceiling tile
|

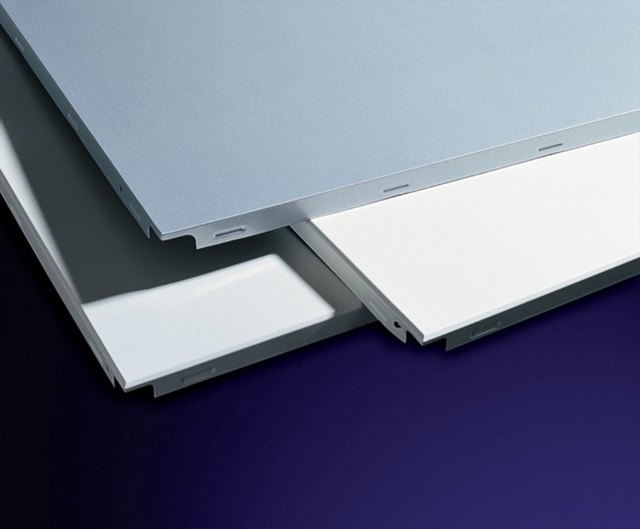

Product:
|
Lay-in aluminum ceiling
|
|
Size:
|
595*595mm,603*603mm
|
|
|
height:
|
13.5mm
|
|
|
Thickness:
|
0.4mm,0.5mm,0.6mm,0.7mm,0.8mm,0.9mm
|
|
|
Powder coating thickness:
|
0.08mm(average thickness 0.06mm)
|
|
|
Edge width:
|
During 4mm to 9mm
|
|
|
Pattern:
|
Beveled plain or perforated
|
|
|
Perforation Dia:
|
Φ0.8mm,Φ1.8mm, Φ2.3mm,Φ3.0mmetc.
|
|
|
Colour:
|
Refer to RAL Color chart
|
|
|
coating:
|
Polyester powder, PE coated, PVDF Coated
|
|
|
Packing:
|
30 pcs/ carton
|
|
|
Packing Carton:
|
615×320×610
|
|
|
Application:
|
Hotel, office, station, hospital, etc.
|
|
|
Accessories for Clay in ceiling
|
38 main carrier,
connector for 38 main carrier, fitting for 38main carrier, T-shaped main carrier, T-shaped cross carrier, T-shaped cross carrier, L Wall angle, M6 hanger, M6 nut, |
Aluminum Ceiling Tiles are presented as follows:
|
Ceiling Type
|
Size(mm)
|
Height(mm)
|
Thickness(mm)
|
Edge Type
|
|
Clip In Ceiling
|
300*300
|
18/20
|
0.45~0.56
|
Beveled Edge/Square Edge
|
|
600*600
|
20/24/28
|
0.45~0.7
|
Beveled Edge/Square Edge
|
|
|
800*800
|
20/24/28
|
1.0
|
Beveled Edge/Square Edge
|
|
|
300*1200
|
20/24/28
|
0.75~0.9
|
Beveled Edge/Square Edge
|
|
|
600*1200
|
20/24/28
|
0.75~1.1
|
Beveled Edge/Square Edge
|
|
|
Lay In Ceiling
|
275*275 (295*295)
|
8
|
0.60~0.70
|
Square Edge
|
|
575*575 (595*595)
|
8/12/18
|
0.60~0.70
|
Beveled Edge/Square Edge
|
|
|
585*585 (595*595)
|
10
|
0.60~0.70
|
Square Edge
|
|
|
585*585(605*605)
|
10
|
0.60~0.70
|
Square Edge
|
|
|
595*1195*575*1175
|
8
|
0.60~0.70
|
Square Edge
|
|
|
603*1210*585*1195
|
8
|
0.60~0.70
|
Square Edge
|
|
|
Ceiling Type
|
Open size(mm)
|
Width & Height(mm)
|
Thickness(mm)
|
Length(mm)
|
|
Open grid Ceiling
|
50*50
|
Width:10/15
Height:35/40/45/50/60/80
|
0.35~0.6
|
2000
|
|
75*75
|
Width:10/15
Height:35/40/45/50/60/80
|
0.35~0.6
|
1950
|
|
|
100*100
|
Width:10/15
Height:35/40/45/50/60/80
|
0.35~0.6
|
2000
|
|
|
125*125
|
Width:10/15
Height:35/40/45/50/60/80
|
0.35~0.6
|
2000
|
|
|
150*150
|
Width:10/15
Height:35/40/45/50/60/80
|
0.35~0.6
|
1950
|
|
|
200*200
|
Width:10/15
Height:35/40/45/50/60/80
|
0.35~0.6
|
2000
|
|
|
Ceiling Type
|
Width(mm)
|
Length(mm)
|
Thickness(mm)
|
Edge Type
|
|
C-strip
|
C100/C150/C200/C300
|
1000~6000
|
0.45~0.85
|
Beveled Edge/Square Edge
|
|
S-strip
|
C300
|
1000~6000
|
0.45~0.85
|
Beveled Edge/Square Edge
|
|
H-strip
|
C150/C200/C300
|
1000~6000
|
0.45~0.85
|
Beveled Edge/Square Edge
|
|
G-strip
|
C100
|
1000~6000
|
0.45~0.85
|
Square Edge
|
